ForestFrog Series 10W 15W LED Explosion Proof Work Light Power Factor > 0.98
Features And Benefits:
1. High efficacy LED source. Long lifespan.High lumen output.
2. Good heat dissipation ,long life span .
3. Carrying handle design, portable and convenient.
4. Explosion proof design can use in the hazardous application.
5. High strength aluminum alloy housing. can endure 20 J impact
6. Meet the demand of the emergency illumination.
7. Adjustable lamp head can easily adjust illumination area.
8. Life span> 50,000 hours.
Specifications:
Standard &Certificate:
Ex Mark: Gas:
II2 G Ex db op is IIC T* Gb
Dust: II2 D Ex tb op is IIIC T* Db
Certificate:
| ATEX Certification NO.:LCIE 12 ATEX 3069X/01 | IECEx Certification NO.:IECEx CQM 12.0034X |
| CE | RoHS |
Executive Standard:
| (IEC)EN 60079-0 | (IEC)EN 60079-1 | (IEC)EN 60079-7 |
| (IEC)EN 60079-28 | (IEC)EN 60079-31 | |
| EN 55015 | EN 61547 | EN 61000-3-2 |
| EN 61000-3-3 | EN 60598-1 | EN 60598-2-5 |
| EN 62031 | EN 62493 | IEC 62321-4 |
| IEC 62321-5 | IEC 62321-6 | IEC 62321-7-1 |
| IEC 62321-7-2 | IEC 62321-8 | |
Luminaire Efficacy: 136.5lm/W
Lifespan:>50,000 hours
Operating Voltage: 100-277 VAC/141-392 VDC
Power:10W,15W
Frequency:50/60Hz
Power Factor: ＞0.98
THD:＜10%
Insulation Class: Ⅰ
LED Driver: Over voltage protection/short circuit protection
Weight:5.2Kg
Size:209*236*303mm
Ambient Temperature: -20℃-+55℃
Earthing Protection: M4 (Internal & external earth bolts)
IP Code: IP66
Enclosure Material: Die-casting aluminium alloy
Enclosure Colour: Orange,RAL2011(optional grey RAL7040)
Coating: Epoxy powder coating
Exposed Fastener: Stainless steel
Protective Cover: Tempered glass,Stand 7J impact

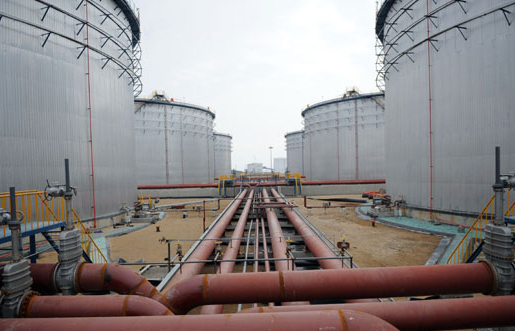

Applications:
1. Oil&Gas Exploration
2. Drilling
3. Oil Refinery
4. Petrochemical Plant
5. Power Plant
6. Pharmaceutical Plant
Ordering Information:
| Product type | Ex-KFF* | Ex-KFF* | Ex-KFF* |
| P/N | Ex-KFF*H6V6WM-B-E | Ex-KFF*H6V6NH-B-E | Ex-KFF*H6V6CH-B-E |
| Power(W) | 10/15W |
| Color temp. | Warm white | Natural white | Cool white |
| CCT(K) | 3000±300 | 4000±300 | 5700±300 |
| CRI | 80 | 70 | 70 |
| Luminous(lm) | 10W | |
| 15W | |
| Size(mm) | 209*236*303 |
| Weight(KG) | 5.2 |
| Ex Mark | II 2 G Ex db op is IIC T* Gb;II 2 D Ex tb op is IIIC T* Db |
| Temp. Classification | T6 |
| Rated input voltage(V) | 100~277VAC, 141~392VDC |
| Battery | Rated capacity(Ah) | 4.4 |
| type | Lithium battery |
| Lifespan | 500 cycles |
| Light Duration(h) | 10W | >10 |
| 15W | >6 |
Chargin g time
(after full discharge)(h) | 3 |
| LED source | High efficacy LED |
| Ambient temp.(℃) | -20~+55 |
| IP Code | IP66 |
| Insulation | I |

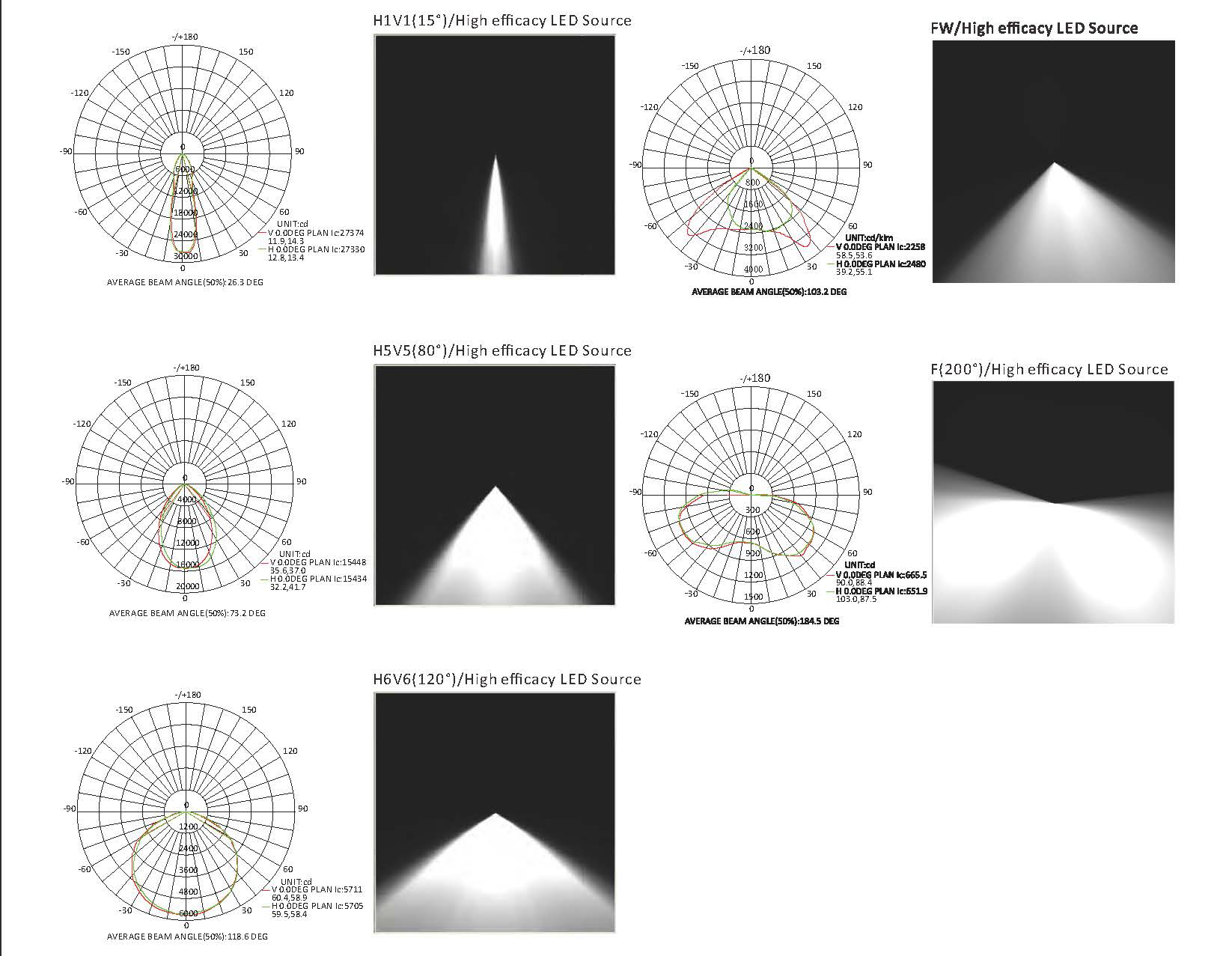

Candela Distribution:
Competitive advantages of our factory:
1. Very competitive price and high quality control.
2. Timely delivery.
3. Environmentally friendly products.
4. Various designs.
5. Accept small orders.
Why buy from us instead of buying from other suppliers?
1. Good location and convenient transportation.
2. ATEX, IECEx, CE, RoHS certification.
3. Advanced production and processing equipment, environmentally friendly and reliable products.
